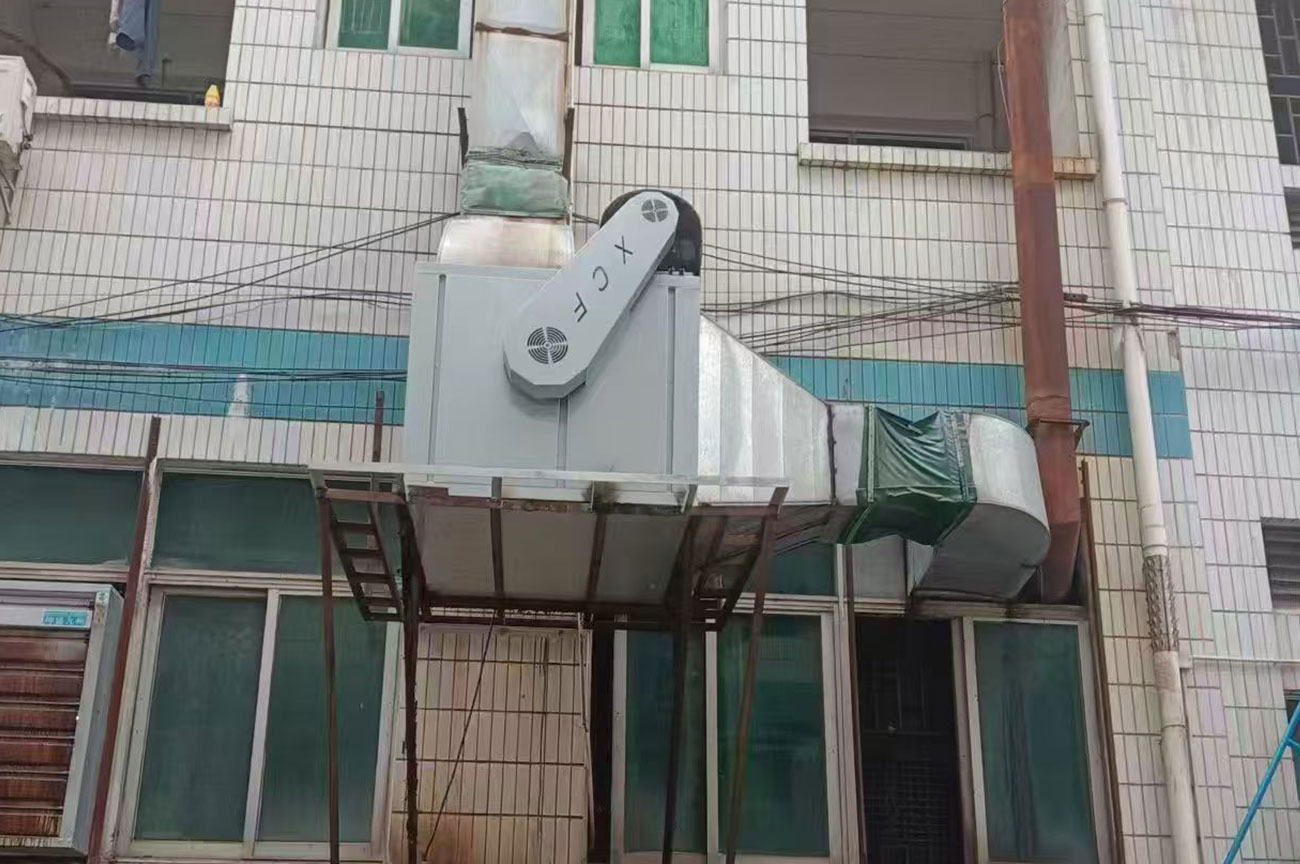

Xiaowu Barbecue
A ventilation project for barbecue fume and summer hall stuffiness. Backward-curved cabinets provide centralized fume discharge, water-cooled fresh air units deliver cool fresh air to the dining area, and a commercial kitchen AC cools the kitchen. The cabinets discharge fume smoothly, the fresh air units improve hall temperature and humidity, and the kitchen AC lowers kitchen temperature. The coordinated system keeps fume from lingering for a fresh, comfortable dining environment.
Project overview
From the on-site air problem, determine equipment and air paths.
A ventilation project for barbecue fume and summer hall stuffiness. Backward-curved cabinets provide centralized fume discharge, water-cooled fresh air units deliver cool fresh air to the dining area, and a commercial kitchen AC cools the kitchen. The cabinets discharge fume smoothly, the fresh air units improve hall temperature and humidity, and the kitchen AC lowers kitchen temperature. The coordinated system keeps fume from lingering for a fresh, comfortable dining environment.
Exhaust, fresh air and cooling equipment configured for barbecue and restaurant venues with heavy oil fume, stuffy dining halls and hot kitchens.The case illustrates the approach; specific equipment and parameters follow actual project documents.
Project gallery
On-Site Photos
Project challenge
Key Questions to Confirm
Pollution & Heat Sources
Locate fume, oil mist, odor or heat sources.
Air Paths
Plan the direction of fresh air in and pollution out.
Installation & Operation
Check duct resistance, noise, energy and maintenance.
Our solution
Organize fume extraction, fresh-air intake and kitchen cooling.
Select by exhaust volume, duct resistance and dining-area comfort, preventing fume spillover while keeping the hall cool and the kitchen temperate.
- RequirementsClarify the scenario, problem and goal
- ParametersCheck airflow, pressure and media
- SelectionMatch products and interfaces
- SupportPre-sales, in-sales and after-sales
Products used
Equipment Used
Backward-Curved Cabinet Fan
High pressure to quickly extract barbecue and cooking fume.
High-Pressure Cabinet Fan
High static pressure for multi-bend exhaust ducts.
Commercial Kitchen Air Conditioner
Spot-cooling for kitchen stations in hot environments.
Project approach
