Industrial Centrifugal Ventilation
Industrial Centrifugal Fan
Centrifugal fans for ducted supply, exhaust, fume extraction and process ventilation, selected by airflow, static pressure and media conditions.
- Product Name
- Industrial Centrifugal Fan
- Main Use
- Supply · Exhaust · Process Ventilation
- Support
- Technical consulting · Professional selection · After-sales support
Introduction
Industrial Centrifugal Fan Introduction
This series of fan products is known in the industry as the 'King of Kitchen Smoke Fans': the C3-48 series fan was specifically developed by our company to meet the needs of kitchen smoke extraction. It's a high-static-pressure fan, especially suitable for situations with high duct resistance. Unlike the A3-48, which is used in low-resistance duct systems and can easily cause the motor to overload, the transmission method is motor direct drive, with a simple and compact structure that’s easy to maintain – you just need to clean the impeller regularly. So, the C3-48 is an upgraded version based on that.
Specifications
Parameters to Confirm for Selection
This page does not substitute official product documents. Final models and performance data are subject to technical confirmation.
ParameterDetails

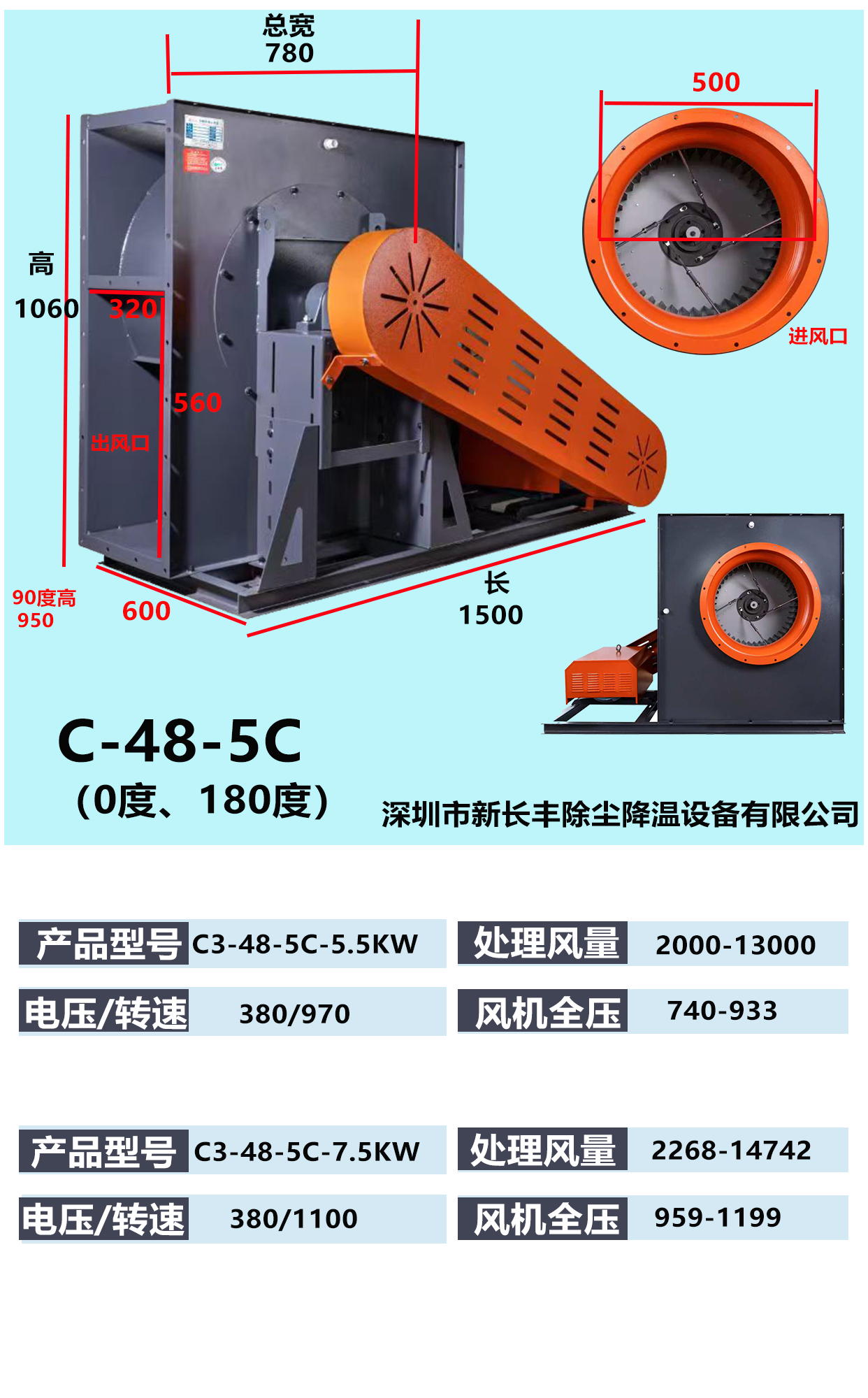

ModelC3‑48‑5C‑5.5KW
Product NameC3‑48 Centrifugal Fan
Maximum Airflow2000‑13000 m³/h
Maximum Pressure740‑933 Pa
Power5.5 kW
Voltage380 V
Speed970 rpm
Dimensions1500*780*1060 mm
Inlet Size500 mm
Outlet Size400*300 mm
Applications
Typical Applications
Factory & workshop ventilation
Factory ventilation organizes supply and exhaust by layout to control temperature, dust and odor.
Ask about this application ↗Chemical & light-industrial process air
Chemical and light-industrial process air needs corrosion- or heat-resistant equipment matched to the medium and duty.
Ask about this application ↗Building supply & exhaust
Building supply and exhaust refresh indoor air and balance pressure alongside HVAC and fresh-air systems.
Ask about this application ↗Case studies
Industrial Centrifugal Fan Case Studies
Engineering Project
Industrial workshop exhaust project
Centrifugal fans with ductwork extract heat and fumes across a multi-span steel workshop.
View case ↗Engineering ProjectCommercial kitchen exhaust retrofit
Centrifugal fans paired with purifiers collect, convey and discharge kitchen oil fume.
View case ↗
Quality & service
Quality First, Customer Foremost.
Xin Changfeng follows the ISO9001 quality management system, centered on technical innovation and quality, with pre-sales, in-sales and after-sales service.
- Project requirements & technical consulting
- Product selection & sales support
- Manufacturing quality management
- After-sales technical support & service
Product FAQ
Industrial Centrifugal Fan FAQ
Please provide the application, airflow, static pressure, media temperature, installation space, noise and power supply.
Yes, selected by oil-fume load, duct resistance and cleaning requirements, usually with a purifier.
Match the duty point, choose a suitable impeller and speed, and add vibration isolation and silencing.
No. Final models and performance follow product documents and engineering confirmation.
