Multi-Blade Centrifugal Ventilation
Multi-Wing Centrifugal Fan
Multi-blade impeller design for low-to-medium pressure supply/exhaust and OEM ventilation equipment.
- Product Name
- Multi-Wing Centrifugal Fan
- Main Use
- Supply · Exhaust · OEM Equipment
- Support
- Technical consulting · Professional selection · After-sales support
Introduction
Multi-Wing Centrifugal Fan Introduction
The 11-62-A centrifugal fan is a high-efficiency, low-speed, low-noise centrifugal fan. It features an advanced aerodynamic impeller design and a logarithmic spiral casing. It's novel and compact in structure, has low vibration, and is easy to adjust during use. It’s used for air conditioning units, ventilation in hotels and restaurants, or for exhaust smoke extraction. It can also be used for general indoor and outdoor ventilation in buildings. It transports air or other non-flammable, harmless gases, without sticky substances, with gas temperatures ≤80°C, and solid impurities <150 mg/m³.
Specifications
Parameters to Confirm for Selection
This page does not substitute official product documents. Final models and performance data are subject to technical confirmation.
ParameterDetails

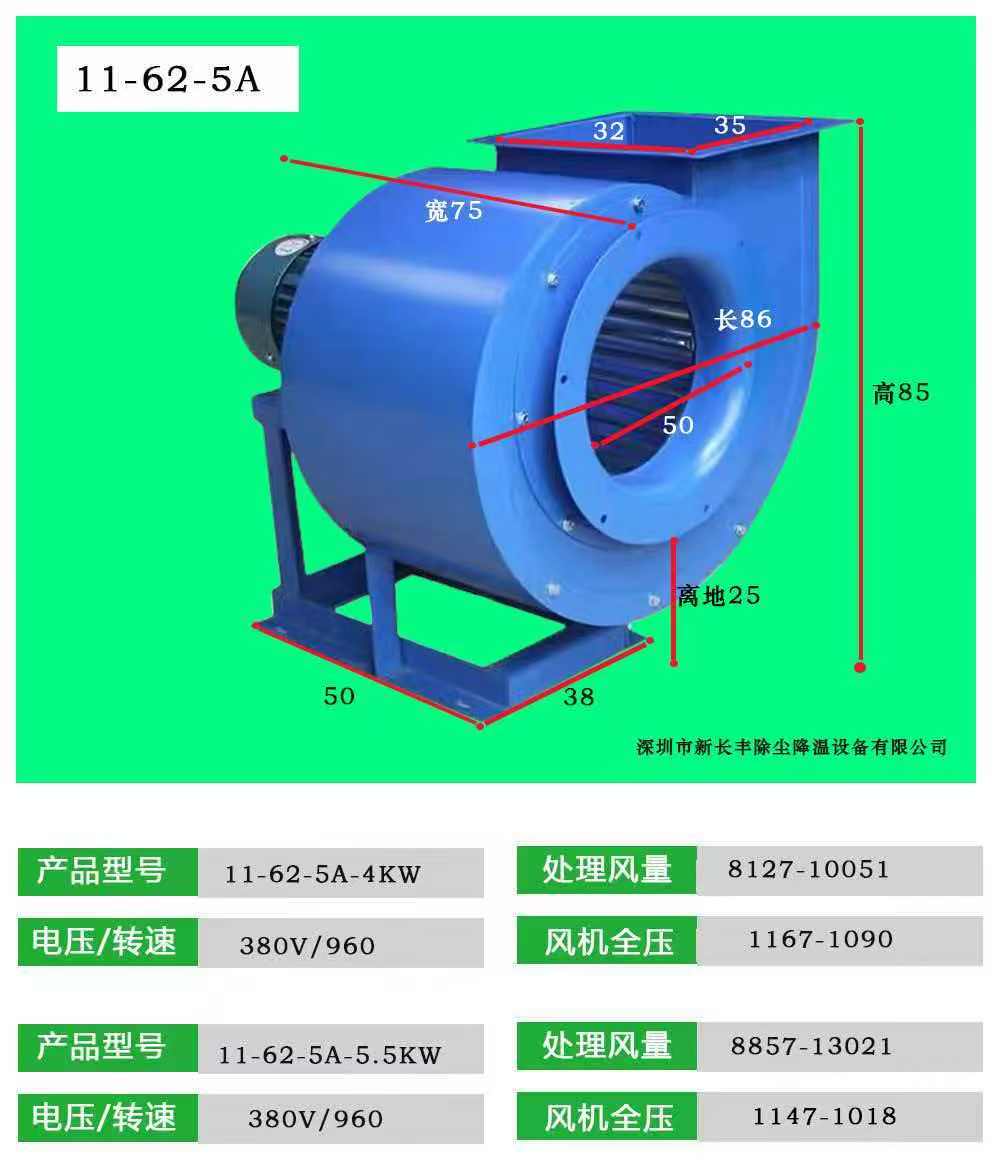

Model11‑62‑5A‑4KW
Product NameMultiblade Centrifugal Fan
Max Airflow8127‑10051 m³/h
Max Air Pressure1167‑1090 Pa
Power4 kW
Voltage380 V
Speed960 RPM
Dimensions860*750*850 mm
Inlet Size500 mm
Outlet Size320*350 mm
Applications
Typical Applications
Small and large hotels
Confirm equipment selection for this scenario based on on-site and system conditions.
Ask about this application ↗Restaurants
Confirm equipment selection for this scenario based on on-site and system conditions.
Ask about this application ↗Small eateries
Confirm equipment selection for this scenario based on on-site and system conditions.
Ask about this application ↗Case studies
Multi-Wing Centrifugal Fan Case Studies
Quality & service
Quality First, Customer Foremost.
Xin Changfeng follows the ISO9001 quality management system, centered on technical innovation and quality, with pre-sales, in-sales and after-sales service.
- Project requirements & technical consulting
- Product selection & sales support
- Manufacturing quality management
- After-sales technical support & service
Product FAQ
Multi-Wing Centrifugal Fan FAQ
High airflow, compact size and moderate pressure for low-to-medium pressure duty and OEM.
Good for general supply and make-up air; use suitable materials with purifiers for heavy oil fume.
Provide airflow, static pressure, dimensions, media temperature and noise limits.
Clean the impeller and casing regularly to keep balance and airflow efficiency.
